“With double-sided one-pass printing built around a stable sheet path, the Lithrone GX40RP advance achieves impressively high production for either light or heavy stocks.”
Scroll down

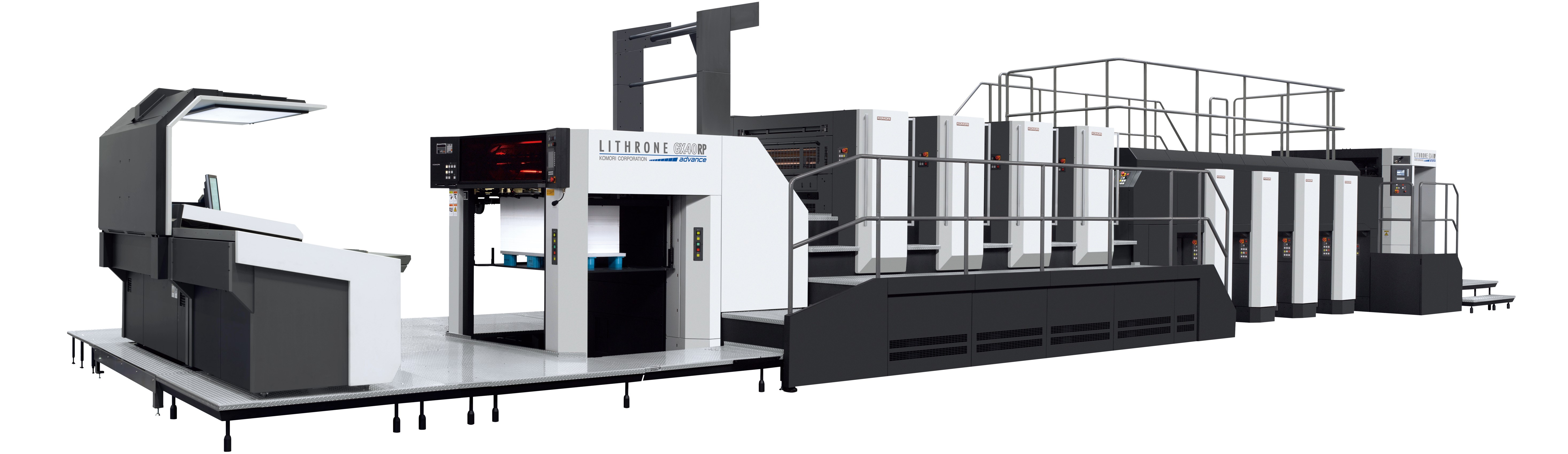

LITHRONE GX40RP advance
40-inch Front/Reverse Multi-Color Offset Printing Press
Productivity
Unmatched productivity for double-sided printing
High performance
Impressively high production for either light or heavy stocks
Connected Automation
Better collaboration and optimization between processes, and by allowing for high-level automation using presets based on information from upstream systems
Unmatched productivity for double-sided printing
With double-sided one-pass printing built around a stable sheet path, the Lithrone GX40RP/GX44RP advance achieves impressively high production for either light or heavy stocks. Additionally, the use of a gripper transfer process that removes the need for sheet tail margins significantly reduces paper costs.
Advance Series
World Class ROI
The Lithrone GX/G advance series have been developed to provide customers with a world class ROI, with the highly advanced Lithrone sheetfed offset presses.
Connected Automation
Connected Automation, Komori’s concept for creating a Smart Factory, develops labour and work saving solutions, and strengthening standardization and inspection mechanisms.
Print Quality
The optimized dampening system, the dot quality sharpness and stability is maintained while suitability for high speed/long run printing is improved.
Achieving High Profits and Print Quality
The recent tide of rapid changes in the social and economic environment, major changes have been sought in the printing industry. Printing company management faces one of its most critical issues: to what extent can productivity in the printing process be raised.
Through Komori's commitment to Connected Automation, the Lithrone GX40RP/GX44RP advance delivers better collaboration and optimization between processes, and by allowing for high-level automation using presets based on information from upstream systems, increasing productivity throughout the entire printing process, and providing one of the world class ROI.
A Simple Design for Stable Operation
Simple paper transfer, with no perfecting mechanism, ensures stable operation for everything from light to heavy stocks.
No margins
No margin is required on the paper's tail end, which can reduce yearly paper costs by approximately 1.4% compared to presses with perfecting mechanisms.
| LITHRONE GX40RP advance (40" Front/Reverse Multi-Color Offset Printing Press) specifications | ||||||||
| Model | Thin sheet, high printing speed specication | Thin sheet standard specication | Thick sheet specication | |||||
| GLX-840RP-A | GLX-1040RP-A | GLX-840RP-A | GLX-1040RP-A | GLX-740RP-A+C | GLX-840RP-A+C | |||
| Number of colours | 4 x 4 | 5 x 5 | 4 x 4 | 5 x 5 | 6 x 1 | 6 x 2 | ||
| Max printing speed | sph | 18,000 | 16,500 | |||||
| Max sheet size | mm | 750 x 1,050 (720 x 1,030 special specification) | ||||||
| Min sheet size | mm | 360 x 520 | ||||||
| Max printing area | mm | 740 x 1,040 (710 x 1,020 special specification) | ||||||
| Sheet thickness range | mm | 0.04 ~ 0.5 | 0.2 ~ 0.8 | |||||
| Plate size | mm | 811 × 1,055 (800 × 1,030 special specification) | ||||||
| Blanket size | mm | 935 × 1,060 (920 × 1,040 including aluminum bar) | ||||||
| Feeder pile height | mm | 1,850 | ||||||
| Delivery pile height | mm | 1,450 | ||||||
| Dimensions | Length (L) | mm | 20,514 | 22,870 | 20,514 | 22,870 | 22,241 | 23,419 |
| Width (W) | mm | 4,426 (5,620 with blower cabinet) | ||||||
| Height (H) | mm | 3,264 | ||||||
* Total press length includes the feeder/delivery steps and the operation stand.Dimensions will also differ if options such as a double coater, drying unit, automatic non-stop feeder, or double delivery are selected.
* The above specs require either H-UV, H-UV L (LED) or UV.
* Total press length for thick paper specs includes coater and extended delivery.
* Maximum printing speed may differ depending on chosen specifications and printing conditions.
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
