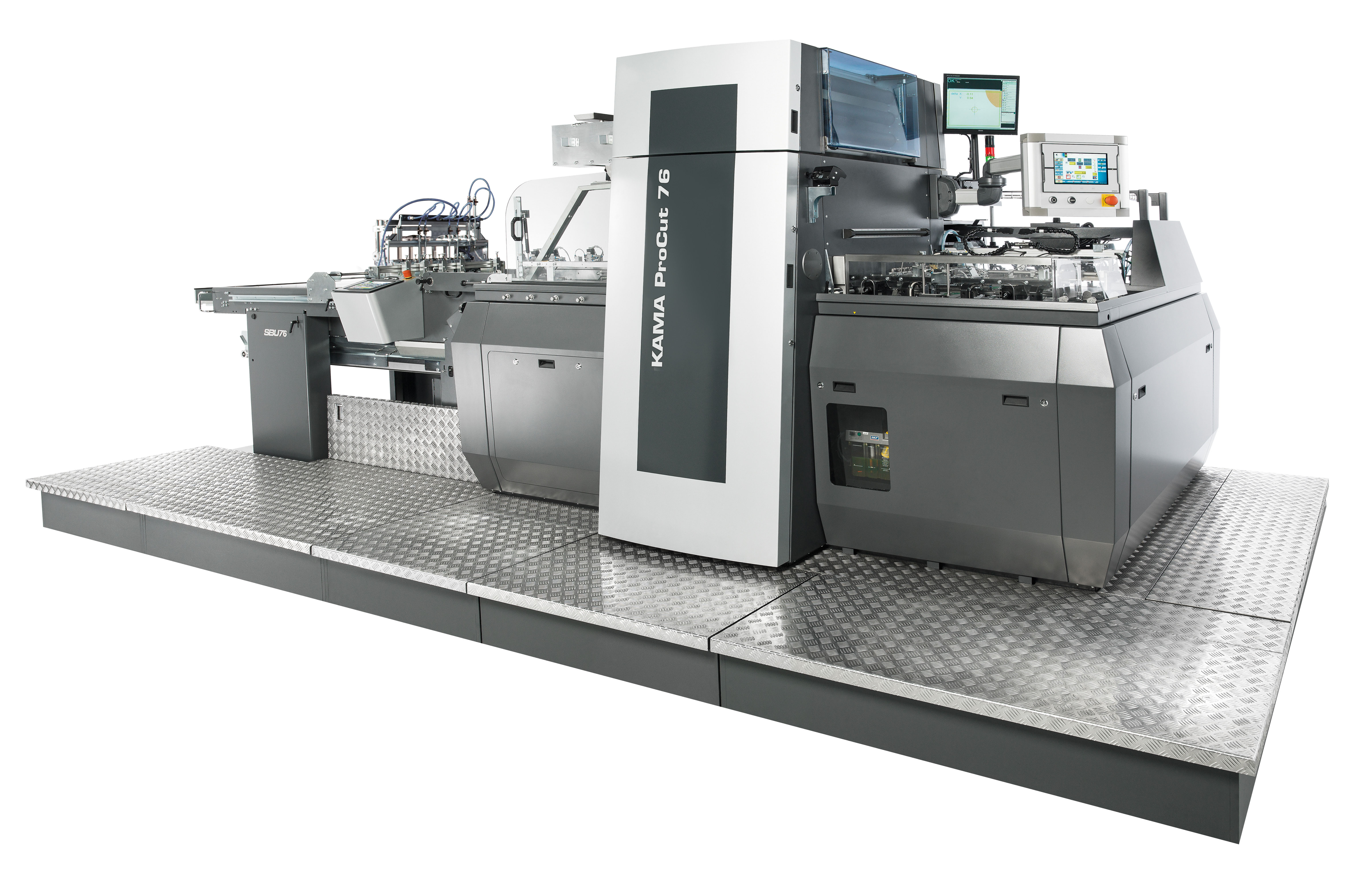

ProCut 76 die cutter

Short set-up times, time-saving features and high-quality output make the KAMA ProCut 76 flat-bed die cutting and stamping machine a reliable and cost-effective solution for finishing in sheet size B2+ (769 x 600 mm). With the KAMA AutoRegister, you can also cut and crease digitally printed sheets with high registration accuracy, allowing you to address the new market for short runs in packaging.

The versatile ProCut 76 is suitable for many different applications and is a perfect, state-of-the-art successor for worn-out cylinders and platens. And you can simply carry on using any tools you already have. The ProCut 76 can be retrofitted with an hot foil stamping system at any time.

KAMA

download brochure

Versatile applications

Flexible & efficient – for small to medium runs.

Gentle sheet transport on a single level, clean creasing lines, embossing and cutting with highest registration accuracy and no nicks: the ProCut 76 is a flexible solution for post-press finishing of paper, paperboard and plastics in the sheet size B2. The machine can be retrofitted for hot cutting of plastics or for hot foil enhancements.

Fast conversion

Relevant for short runs and digital printing.

Fast order changes are absolutely essential for smaller runs and digitally printed jobs. On the ProCut 76 it takes just around 5 minutes to convert the setup, which means that the next order can start up quickly – thereby making post-press finishing profitable. The 4+1 system with prepared 1 mm plates also ensures that uptime is maximised. With the type of repeat orders involving intensive creasing, which are common in packaging jobs, this can shorten set-up times by up to 90%.

Highest registration accuracy

… for every sheet.

The ProCut 76 machines with the linear KAMA gripper, which doesn't have to be realigned, achieve the best registration accuracy in the market. And the KAMA AutoRegister guarantees the highest precision. It aligns every sheet to the print image, so that all cutting, crease lines and blind embossing is accurately done with an accuracy of a tenth of a millimetre.

Continue using your existing tools

Smooth transition to the new solution.

Thanks to the universal chase on the ProCut 76, you can continue to use your existing tools without any problems whatsoever. This also applies to small cutting dies.

AutoRegister AR3

NEW: AutoRegister AR3 also provides "skew adjust" - for maximum register accuracy with sheets cut after printing and twisted sheets, for multiple embellishment and most demanding packaging.

Compact machine

Lots of applications in a small space.

With a footprint of around 12 m² including the platform, the ProCut 76 makes do with very little space. Sheets are transported at a right angle in the system, so the compact machine can also be positioned in a corner.

Specifications of the ProCut 76
Processable materials & output
Paper	from 100 g/m²
Paperboard, micro-corrugated board	max. 1,500 g/m² (bzw. 1.8 mm)
Plastics (PET, PP, PVC)	max. 1,500 g/m²
Maximum sheet size	760 x 600 mm (29 15/16 x 23 5/8 in)
Minimum sheet size	279 x 210 mm (11 x 8 1/4 in)
Speed*	5,500 sheets/h
Cutting force	165 t (1.65 MN)
Maximum cutting size	743 x 585 mm (29 3/8 x 23 1/16 in)
Gripper margin	10 mm
Dimensions (length x width)	4.87 x 2.69 m

* Depending on the material, sheet size and die configuration. Technical data and figures are subject to change.
