All applications with the highest accuracy and extremely fast set-up/changeover times.
For commercial print jobs like greeting cards, tickets, product labels, plastic cards, adhesive labels etc. and for smaller packaging. For offset and digital printing. With a footprint of less than 5 m2, the compact ProCut 58 is a miracle in terms of space requirements.
For a flexible post-press setup.

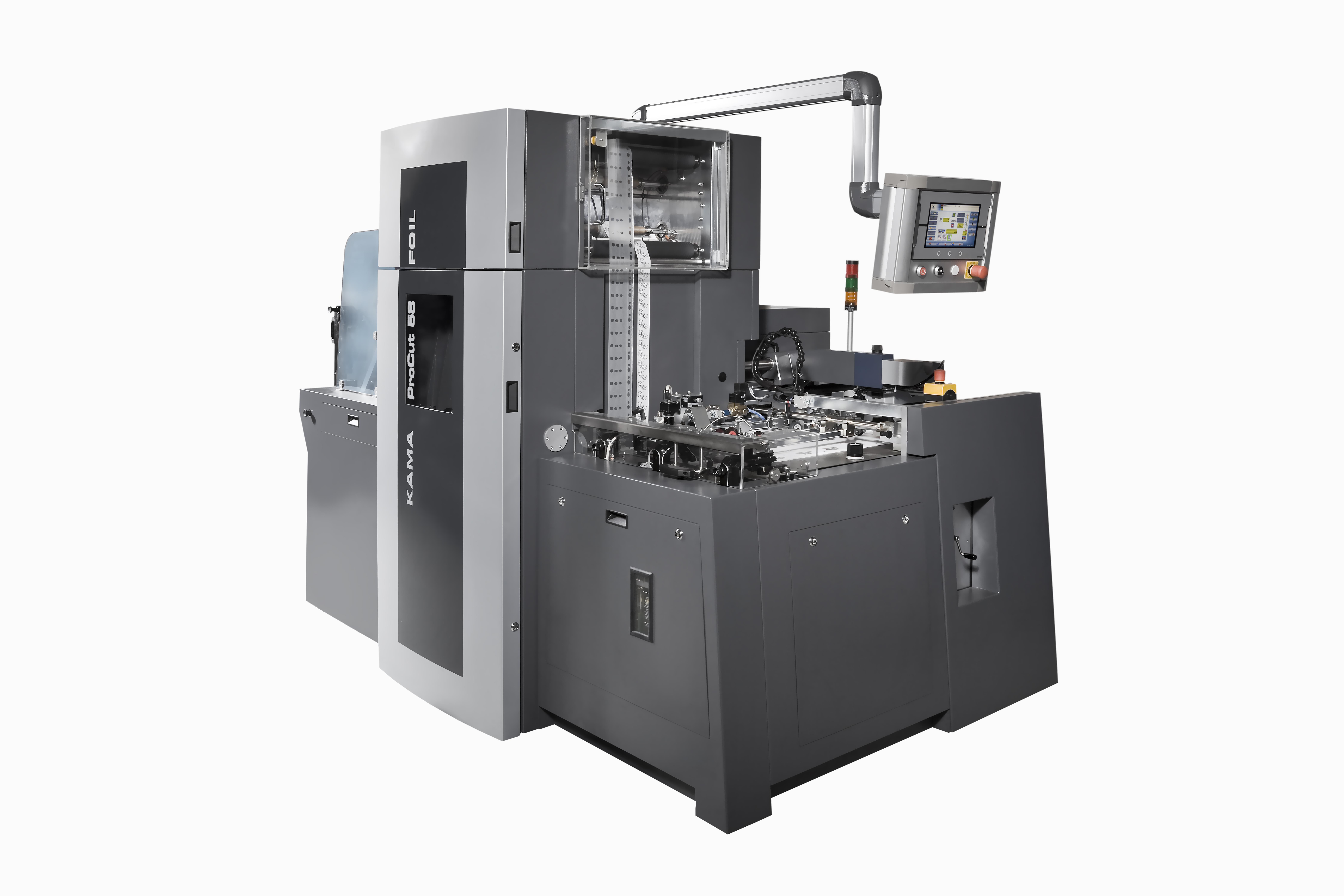

ProCut 58 is a flexible professional solution for post-press finishing and cold embossing of paper, paperboard and plastics in the sheet size B3. A system for hot foil finishing can be retrofitted.
Essential for short runs and in digital printing.
Changeover in just 5 minutes? Easy to achieve on the KAMA ProCut 58! These short set-up times make finishing for small and personalised job orders profitable.
Ideal for digital print finishing.
KAMA ProCut die cutting and stamping machines offer register accuracy that is unrivalled in the marketplace. With the KAMA AutoRegister, digitally printed sheets can be cut, creased and embossed with an accuracy of a tenth of a millimetre.
Easy transition to the new solution.
Thanks to the universal chase of the ProCut 58, simply continue to use your existing tools for the sheet size B3+ as well as small cutting dies without any problems at all.
Many applications in a small space.
The KAMA ProCut 58 offers the full scope of applications with a footprint of less than 5 m2, which means that it takes up very little space and fits in every corner.
| Specifications of the ProCut 58 | ||
| Processable materials & output | ||
| Paper | from 80 g/m² | |
| Paperboard | max. 800 g/m² | |
| Plastics | 80 - 800 g/m² (up to 1 mm) | |
| Maximum sheet size | 580 x 400 mm (22 27/32 x 15 3/4 in) | |
| Minimum sheet size | 210 x 148 mm (8 1/4 x 5 13/16 in) | |
| Speed* | 6,000 sheets/h | |
| Cutting force | 120 t (1.2 MN) | |
| Maximum cutting size | 570 x 380 mm (22 x 15 in) | |
| Gripper margin | 10 mm | |
| Dimensions (length x width) | 2.6 x 1.75 m | |
* Depending on the material, sheet size and die configuration. Technical data and figures are subject to change.
