- Set-up time savings thanks to software supported positioning outside the embossing machine
- Easy to operate
- Temperature-corrected target position is calculated and displayed by the system
- More uptime for the stamping machine
- For all positioning work for hot foil stamping and hot-cut
- NEW CPX 106 for all common flat-bed embossing machines for the B1 sheet format

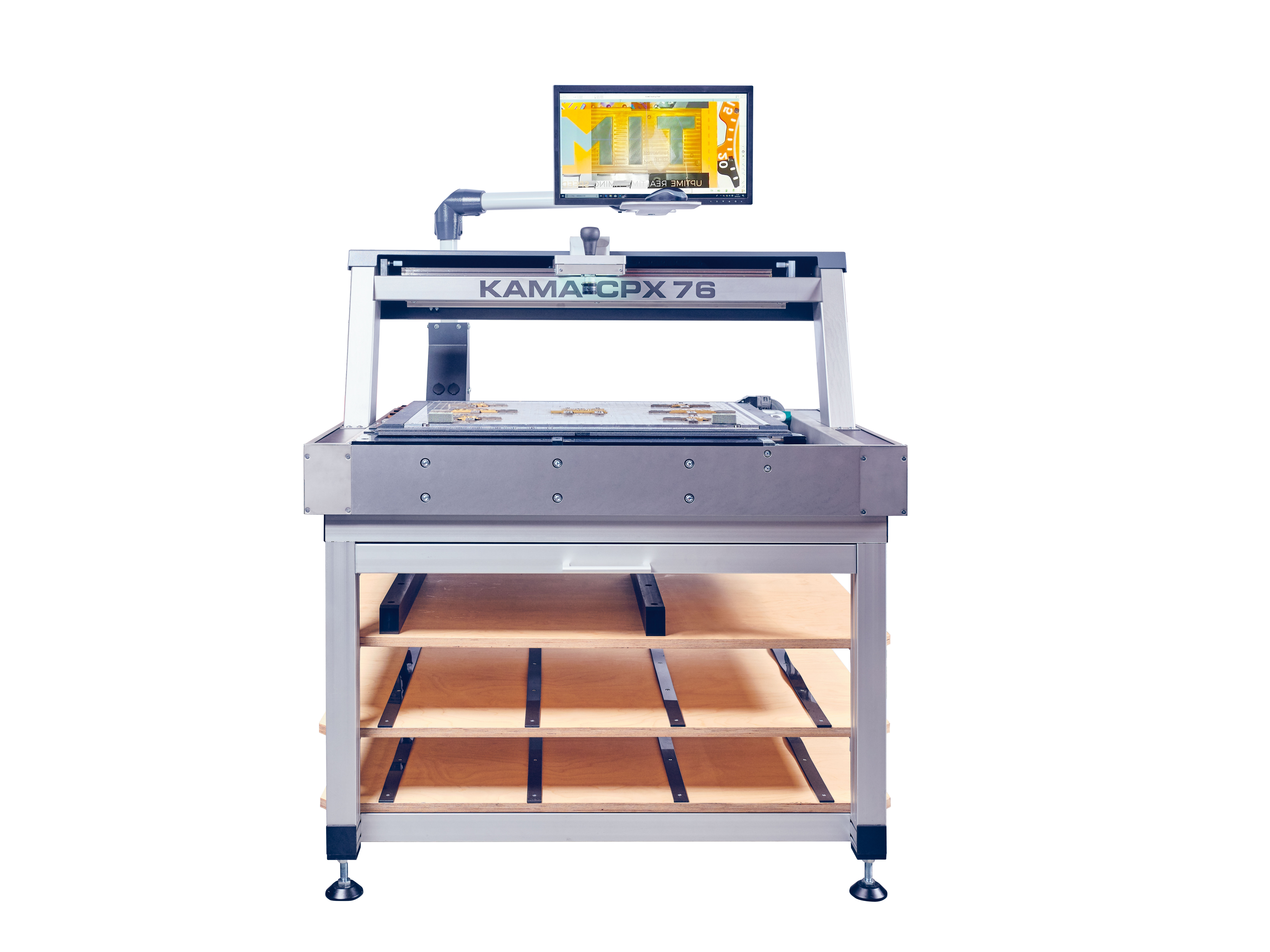

KAMA CPX 76
Digital positioning system KAMA CPX
Now also for hot foil stamping machines for B1 sheets: The digital KAMA CPX positioning system speeds up all types of positioning tasks and proves to be a highly effective time saver: the set-up time can be reduced by up to a 90%! The clichés are mounted directly in the target position on the mounting plate which the software has already calculated including the thermal expansion.
Additional time savings: while the cliché is being positioned on the CPX, the stamping machine remains free to carry out a different job.
KAMA
Benefits
| Specifications of the CPX | ||
| KAMA CPX 76 | NEW: KAMA CPX 106 | |
| Frame size, max. | 700 x 855 mm | 870 x 1,320 mm * |
| Measuring range, max. | 600 x 785 mm | 800 x 1,120 mm |
| Dimensions (length x width x height) | 1,220 x 1,120 x 1,800 mm | 1,730 x 1,430 x 1,800 mm |
| Directly compatible with | ProCut 58 Foil, ProCut 76 Foil | ProCut 76 Foil |
| Suitable for use with | all common hot foil stamping machines for sheet format B2 | all common hot foil stamping machines for sheet format B1 |
* Supports all standard stamping machines for the sheet format B1. Technical data and figures are subject to change.
